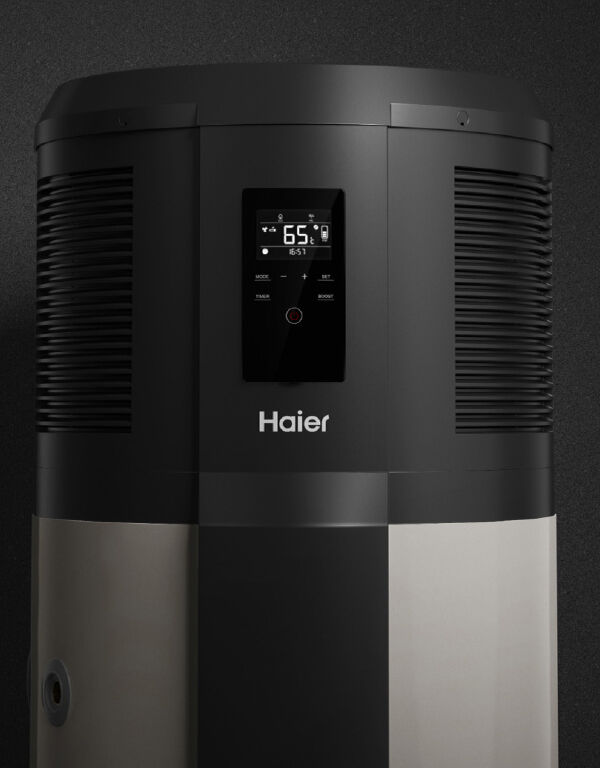

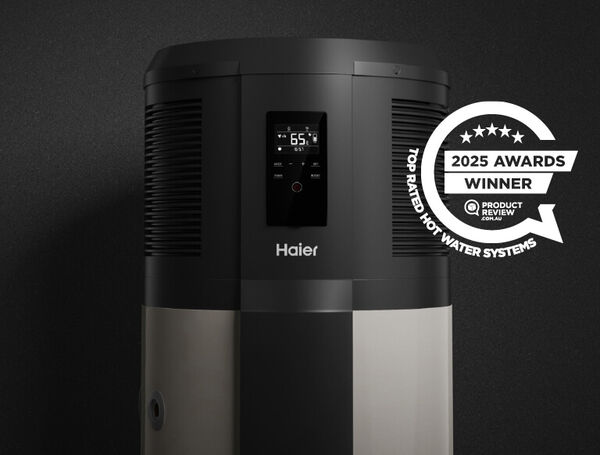

Monoblock, hero

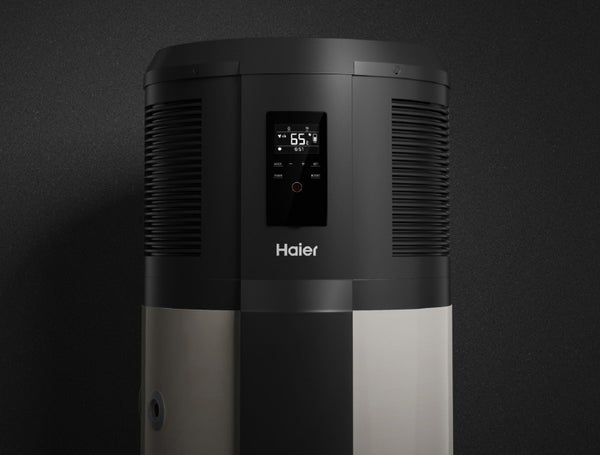

Monoblock

Heat Pump Water Heater

Get a quote

Features

Respect for the Planet

Highly efficient compared to electric resistance or gas water heaters, complements Solar PV systems, runs only on electricity, and uses the natural refrigerant R290.

Lower running costs

The heat pump technology results in a 69-79% reduction in electricity used to heat the same volume of water compared to an electric-resistance water heater.*

Expansive operating range

Performance in most New Zealand climates from -7ºC to 45ºC ambient air temperature.

Adapts to your life

Use the SmartHQ™ app on your smartphone to easily select from five modes to best suit your needs, allowing you to adjust heating to lower-cost periods, minimise energy use when you're on vacation, or prioritise solar energy to reduce grid-supply if you have Solar PV.

Technologies

LOW GWP REFRIGERANT

LOW GWP REFRIGERANT

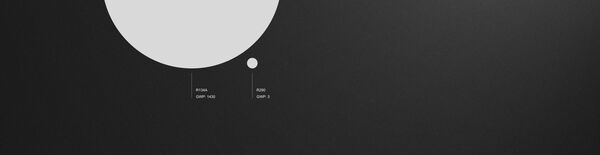

Our Heat Pump Water Heater uses R290 which has a global warming potential (GWP) of 3. Many heat pumps use R134A. R290 has a global warming potential that is 476 times lower than R134A. As many refrigerants are strong greenhouse gases, the use of refrigerants with low GWP is seen as a way to minimise the effect of refrigeration systems on global warming.

ECO MODE

ECO MODE

Eco mode optimizes the benefits of Solar PV and lower cost, time-of-use electricity.The Solar optimisation mode (PV) and time-of use mode (HC) receive a communication signal from an energy management control system (if you have an existing Solar PV system). Alternatively, a timer is used to set heating to the low cost periods of a time-of-use tariff.

LONGEVITY

LONGEVITY

Using patented technology with a triple layer protection creates a long lasting, acid and alkali corrosion resistant inner tank. The inner tank is tested to over 160,000 cycles to ensure durability over the expected lifetime.

CONNECTED

CONNECTED

Built in Wi-Fi module and SmartHQ™ allows control of the appliance from anywhere. Change between five user modes at the tip of your fingers by opening SmartHQ™ on your smartphone.

Specifications

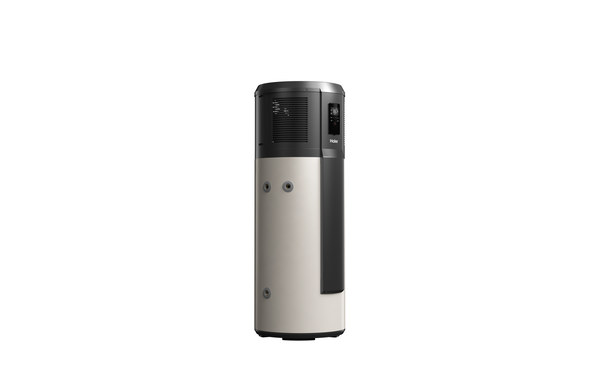

Hot Water Heat Pump, 200L

HP200M1-U1

HP200M1-U1, hero
Capacity

Total water capacity: 195L

Product dimensions

Depth: 630mm

Height: 1658mm

Packaged depth: 695mm

Packaged height: 1940mm

Packaged weight: 116kg

Packaged width: 736mm

Product weight: 91kg

Product weight (filled): 286kg

Width: 600mm

Warranty

Inner cylinder only: 7 years

Inner cylinder only (Commercial): 1 year

Parts and labour: 5 years

Parts and labour (Commercial): 1 year

HP200M1-U1
Hot Water Heat Pump, 200L

Capacity

Total water capacity: 195L

Features

Anode type: Magnesium

Ingress protection: IP24

Performance

Ambient temperature working limits (Heat Pump only): -7°C to 45°C

Ambient temperature working limits (Total appliance): -7°C to 45°C

Heat pump refrigerant mass: 0.34kg

Heat pump refrigerant type: R290

Maximum output water temperature (Heat pump only): 65°C

Maximum output water temperature (Total appliance): 75°C

Noise emissions: 43dB

Smart Appliance:

Plumbing Installation

Expansion control valve (max pressure): 600kPa

Pressure limiting valve setting (max pressure): 500kPa

Pressure temperature relief valve: 700kPa

Power requirements

Electric element power input: 1.5kW

Maximum power input (Heat pump input): 0.75kW

Maximum power input (Total appliance): 2.25kW

Power connection: Hard-wired

Rated Power input (Heat pump): 0.43kW

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Depth: 630mm

Height: 1658mm

Packaged depth: 695mm

Packaged height: 1940mm

Packaged weight: 116kg

Packaged width: 736mm

Product weight: 91kg

Product weight (filled): 286kg

Width: 600mm

Rebates

STC entitlements: Refer to attached brochure

Warranty

Inner cylinder only: 7 years

Inner cylinder only (Commercial): 1 year

Parts and labour: 5 years

Parts and labour (Commercial): 1 year

Download resources

Design Planning

General

Installation

Hot Water Heat Pump, 200L with 15A Plug

HP200M1U1P

HP200M1U1P, hero
Capacity

Total water capacity: 195L

Product dimensions

Depth: 630mm

Height: 1658mm

Packaged depth: 695mm

Packaged height: 1940mm

Packaged width: 736mm

Product weight: 91kg

Product weight (filled): 286kg

Width: 600mm

Warranty

Inner cylinder only: 7 years

Inner cylinder only (Commercial): 1 year

Parts and labour: 5 years

Parts and labour (Commercial): 1 year

HP200M1U1P
Hot Water Heat Pump, 200L with 15A Plug

Capacity

Total water capacity: 195L

Features

Anode type: Magnesium

Ingress protection: IP24

Performance

Ambient temperature working limits (Heat Pump only): -7°C to 45°C

Ambient temperature working limits (Total appliance): -7°C to 45°C

Heat pump refrigerant mass: 0.34kg

Heat pump refrigerant type: R290

Maximum output water temperature (Heat pump only): 65°C

Maximum output water temperature (Total appliance): 75°C

Noise emissions: 43dB

Smart Appliance:

Plumbing Installation

Expansion control valve (max pressure): 600kPa

Pressure limiting valve setting (max pressure): 500kPa

Pressure temperature relief valve: 850kPa

Power requirements

Electric element power input: 1.5kW

Maximum power input (Heat pump input): 0.75kW

Maximum power input (Total appliance): 2.25kW

Rated Power input (Heat pump): 0.43kW

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Depth: 630mm

Height: 1658mm

Packaged depth: 695mm

Packaged height: 1940mm

Packaged width: 736mm

Product weight: 91kg

Product weight (filled): 286kg

Width: 600mm

Rebates

STC entitlements: Refer to attached brochure

Warranty

Inner cylinder only: 7 years

Inner cylinder only (Commercial): 1 year

Parts and labour: 5 years

Parts and labour (Commercial): 1 year

Download resources

Design Planning

General

Installation

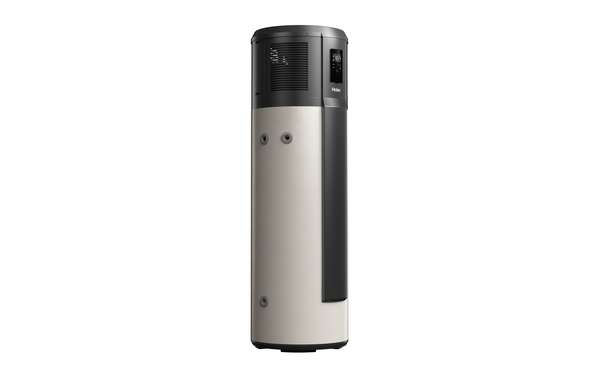

Hot Water Heat Pump, 250L

HP250M1-U1

HP250M1-U1, hero
Capacity

Total water capacity: 246L

Product dimensions

Depth: 630mm

Height: 1951mm

Packaged depth: 695mm

Packaged height: 2250mm

Packaged weight: 128kg

Packaged width: 736mm

Product weight: 106kg

Product weight (filled): 352kg

Width: 600mm

Warranty

Inner cylinder only: 7 years

Inner cylinder only (Commercial): 1 year

Parts and labour: 5 years

Parts and labour (Commercial): 1 year

HP250M1-U1
Hot Water Heat Pump, 250L

Capacity

Total water capacity: 246L

Features

Anode type: Magnesium

Ingress protection: IP24

Performance

Ambient temperature working limits (Heat Pump only): -7°C to 45°C

Ambient temperature working limits (Total appliance): -7°C to 45°C

Heat pump refrigerant mass: 0.34kg

Heat pump refrigerant type: R290

Maximum output water temperature (Heat pump only): 65°C

Maximum output water temperature (Total appliance): 75°C

Noise emissions: 43dB

Smart Appliance:

Plumbing Installation

Expansion control valve (max pressure): 600kPa

Pressure limiting valve setting (max pressure): 500kPa

Pressure temperature relief valve: 700kPa

Power requirements

Electric element power input: 1.5kW

Maximum power input (Heat pump input): 0.75kW

Maximum power input (Total appliance): 2.25kW

Rated Power input (Heat pump): 0.43kW

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Depth: 630mm

Height: 1951mm

Packaged depth: 695mm

Packaged height: 2250mm

Packaged weight: 128kg

Packaged width: 736mm

Product weight: 106kg

Product weight (filled): 352kg

Width: 600mm

Rebates

STC entitlements: Refer to attached brochure

Warranty

Inner cylinder only: 7 years

Inner cylinder only (Commercial): 1 year

Parts and labour: 5 years

Parts and labour (Commercial): 1 year

Download resources

Design Planning

General

Installation

Hot Water Heat Pump, 250L with 15A Plug

HP250M1U1P

HP250M1U1P, hero
Capacity

Total water capacity: 246L

Product dimensions

Depth: 630mm

Height: 1951mm

Packaged depth: 695mm

Packaged height: 2250mm

Packaged weight: 128kg

Packaged width: 736mm

Product weight: 106kg

Product weight (filled): 352kg

Width: 600mm

Warranty

Inner cylinder only: 7 years

Inner cylinder only (Commercial): 1 year

Parts and labour: 5 years

Parts and labour (Commercial): 1 year

HP250M1U1P
Hot Water Heat Pump, 250L with 15A Plug

Capacity

Total water capacity: 246L

Features

Anode type: Magnesium

Ingress protection: IP24

Performance

Ambient temperature working limits (Heat Pump only): -7°C to 45°C

Ambient temperature working limits (Total appliance): -7°C to 45°C

Heat pump refrigerant mass: 0.34kg

Heat pump refrigerant type: R290

Maximum output water temperature (Heat pump only): 65°C

Maximum output water temperature (Total appliance): 75°C

Noise emissions: 43dB

Smart Appliance:

Plumbing Installation

Expansion control valve (max pressure): 600kPa

Pressure limiting valve setting (max pressure): 500kPa

Pressure temperature relief valve: 850kPa

Power requirements

Electric element power input: 1.5kW

Maximum power input (Heat pump input): 0.75kW

Maximum power input (Total appliance): 2.25kW

Rated Power input (Heat pump): 0.43kW

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Depth: 630mm

Height: 1951mm

Packaged depth: 695mm

Packaged height: 2250mm

Packaged weight: 128kg

Packaged width: 736mm

Product weight: 106kg

Product weight (filled): 352kg

Width: 600mm

Rebates

STC entitlements: Refer to attached brochure

Warranty

Inner cylinder only: 7 years

Inner cylinder only (Commercial): 1 year

Parts and labour: 5 years

Parts and labour (Commercial): 1 year

Download resources

Design Planning

General

Installation

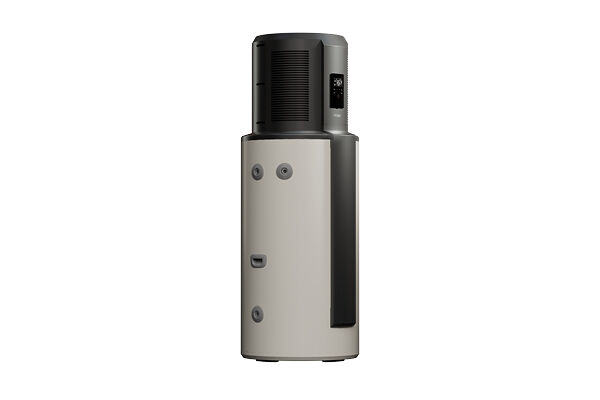

Hot Water Heat Pump, 330L

HP330M1U1

HP330M1U1, hero
Capacity

Rated water capacity: 330L

Total water capacity: 331L

Product dimensions

Depth: 758mm

Height: 1941mm

Packaged height: 2263mm

Packaged weight: 150kg

Packaged width: 745mm

Product weight: 122kg

Product weight (filled): 452kg

Width: 710mm

Warranty

Inner cylinder only: 7 years

Inner cylinder only (Commercial): 1 year

Parts and labour: 5 years

Parts and labour (Commercial): 1 year

HP330M1U1
Hot Water Heat Pump, 330L

Capacity

Rated water capacity: 330L

Total water capacity: 331L

Features

Anode type: Magnesium

Ingress protection: IP24

Performance

Ambient temperature working limits (Heat Pump only): -7°C to 45°C

Ambient temperature working limits (Total appliance): -7°C to 45°C

Heat pump refrigerant mass: 0.47kg

Heat pump refrigerant type: R290

Maximum output water temperature (Heat pump only): 65°C

Maximum output water temperature (Total appliance): 75°C

Noise emissions: 47dB

Smart Appliance:

Plumbing Installation

Expansion control valve (max pressure): 600kPa

Pressure limiting valve setting (max pressure): 500kPa

Pressure temperature relief valve: 850kPa

Power requirements

Electric element power input: 2.2kW

Maximum power input (Total appliance): 3.4kW

Power input range (compressor): 0.2 to 1.2kW

Rated Power input (Heat pump): 0.43kW

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Depth: 758mm

Height: 1941mm

Packaged height: 2263mm

Packaged weight: 150kg

Packaged width: 745mm

Product weight: 122kg

Product weight (filled): 452kg

Width: 710mm

Rebates

STC entitlements: Refer to attached brochure

Warranty

Inner cylinder only: 7 years

Inner cylinder only (Commercial): 1 year

Parts and labour: 5 years

Parts and labour (Commercial): 1 year

Download resources

Design Planning

General

Installation

* Energy savings of 69-79% are based on Haier Monoblock 200L, 250L and 330L when compared to a standard electric storage water heater in Zones 1 to 5 in AS/NZS4234.
