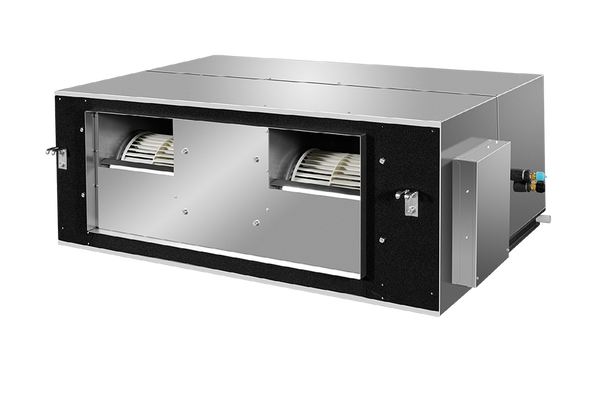

Indoor Unit
Controller
Features
COMFORT IN ALL CONDITIONS
Control the humidity level inside using the Dry function. By removing excess moisture in the air, you can create a comfortable and healthy environment.
CONTROL FROM ANYWHERE
Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device.
EFFICIENT AND EFFECTIVE
The DC fan motor is more energy efficient than a standard AC motor and it is also highly adjustable. This means you can adjust the static pressure and airflow for optimal performance to suit your layout.
SIMPLE INSTALLATION
Designed to fit the standard dimensions of New Zealand homes, the indoor unit easily fits between roof truss spacings of 600mm. Plus, the removable panels make for easy installation and servicing.
Technologies

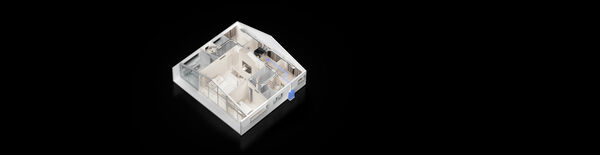

Smart Power
Haier’s Smart Power ducted air conditioning systems provide an effective whole-of-home heating and cooling solution. The system is made up of: an outdoor unit in a suitable location, indoor unit often located in the ceiling, flexible ductwork to deliver airflow to multiple rooms through discreet vents and controller for the whole air conditioning system.

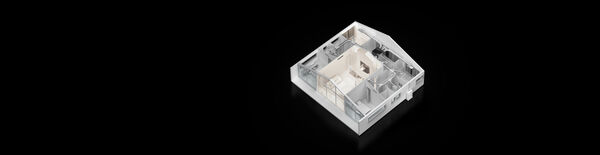

Smart Zone control
For control over the airflow to individual rooms, Haier offers an optional SmartZone controller. With up to eight controllable zones, SmartZone lets you turn the airflow on or off to rooms depending on how they are used, minimising unnecessary heating or cooling.
Corrosion protection
The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.
Specifications

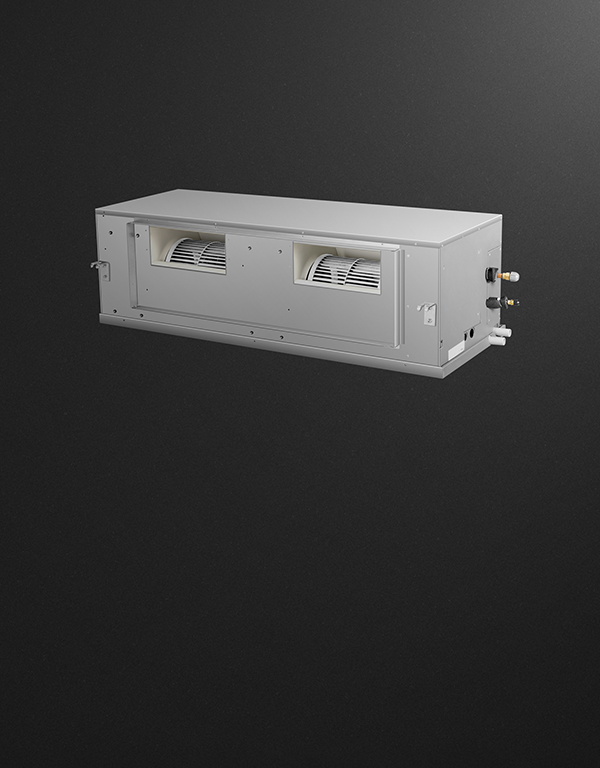

High ESP Ducted R32, 10kW
AD100HN5FA-SET
Capacity
Cooling capacity (kW): 10kW
Heating capacity (kW): 11.5kW
Consumption
COP: 3.61
EER: 3.21
HSPF-RES (Hot/Average/Cold): 4.071 / 3.567 / 3.056
HSPFCOM (Hot/Average/Cold): 4.066 / 3.772 / 3.239
Star-Cool (Hot/Average/Cold): 2.0/1.5/1.5
Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0
TCSPF-COM (Hot/Average/Cold): 4.753 / 4.839 / 5.171
TCSPF-RES (Hot/Average/Cold): 4.419 / 4.072 / 4.217
Product dimensions
Indoor unit depth : 490mm
Indoor unit height: 425mm
Indoor unit width: 1350mm
Outdoor unit depth : 370mm
Outdoor unit height : 965mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Accessories
Central controller: Optional
IR Controller: Optional
SmartAir2 WiFi adaptor: Optional
Standard controller: Optional
Capacity
Cooling capacity (kW): 10kW
Heating capacity (kW): 11.5kW
Consumption
COP: 3.61
EER: 3.21
HSPF-RES (Hot/Average/Cold): 4.071 / 3.567 / 3.056
HSPFCOM (Hot/Average/Cold): 4.066 / 3.772 / 3.239
Star-Cool (Hot/Average/Cold): 2.0/1.5/1.5
Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0
TCSPF-COM (Hot/Average/Cold): 4.753 / 4.839 / 5.171
TCSPF-RES (Hot/Average/Cold): 4.419 / 4.072 / 4.217
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Compressor type: Inverter twin rotary
Dry mode:
Electronic expansion device:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 2.3kg
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation

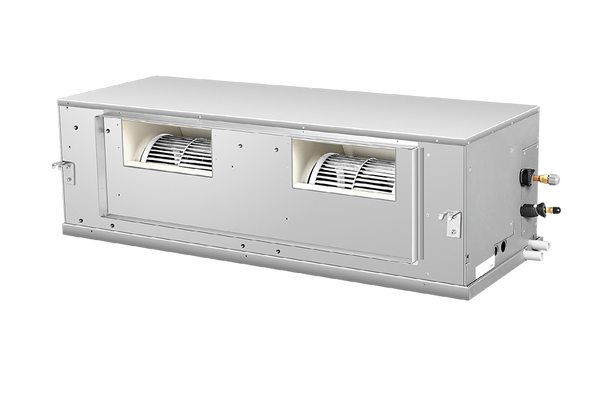

Indoor unit model: AD100S2SH5FA
Indoor unit weight: 59kg
Outdoor unit model: 1U100S2SN5FA
Outdoor unit weight: 82kg
Pipe length maximum: 50m
Pipe size gas: Pipe size 15.88mm
Pipe size liquid: Pipe size 9.52mm
Performance
Airflow: 800L/S
DC inverter:
Indoor sound pressure SPL: 45 / 41 / 37 / 33dBA
Outdoor sound power SWL: 68dBA
Outdoor sound pressure SPL: 52dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 490mm
Indoor unit height: 425mm
Indoor unit width: 1350mm
Outdoor unit depth : 370mm
Outdoor unit height : 965mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Service & Warranty
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Duct Type Air Conditioner
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E16A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E17A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
User Guide - Smartzone Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
Installation
-
Installation Guide
High Static Ducted R32, InstallationManuals-HaierHVACNZ
High ESP Ducted R32, 12.5kW
AD125HP5FA-SET
Capacity
Cooling capacity (kW): 12.5kW
Heating capacity (kW): 14kW
Consumption
COP: 3.8
EER: 3.4
HSPF-RES (Hot/Average/Cold): 3.514 / 3.419 / 3.155
HSPFCOM (Hot/Average/Cold): 3.491 / 3.417 / 3.210
TCSPF-COM (Hot/Average/Cold): 4.228 / 4.201 / 4.425
TCSPF-RES (Hot/Average/Cold): 4.003 / 3.731 / 3.788
Product dimensions
Indoor unit depth : 490mm
Indoor unit height: 425mm
Indoor unit width: 1350mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Accessories
Central controller: Optional
IR Controller: Optional
SmartHQ WiFi control: Optional
Standard controller: Optional
Capacity
Cooling capacity (kW): 12.5kW
Heating capacity (kW): 14kW
Consumption
COP: 3.8
EER: 3.4
HSPF-RES (Hot/Average/Cold): 3.514 / 3.419 / 3.155
HSPFCOM (Hot/Average/Cold): 3.491 / 3.417 / 3.210
TCSPF-COM (Hot/Average/Cold): 4.228 / 4.201 / 4.425
TCSPF-RES (Hot/Average/Cold): 4.003 / 3.731 / 3.788
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Compressor type: Inverter twin rotary
Dry mode:
Electronic expansion device:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 2.9kg
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AD125S2SH5FA
Indoor unit weight: 59kg
Outdoor unit model: 1U125S2SP5FA
Outdoor unit weight: 105kg
Pipe length maximum: 75m
Pipe size gas: Pipe size 15.88mm
Pipe size liquid: Pipe size 9.52mm
Performance
Airflow: 905L/S
DC inverter:
Indoor sound pressure SPL: 47 / 44 / 42 / 39dBA
Outdoor sound power SWL: 69dBA
Outdoor sound pressure SPL: 52dBA
R32 Refrigerant:
Working temperature cooling: -10°C to 50°C
Working temperature heating: -15°C to +24°C
Power requirements
AMP draw: 32A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 490mm
Indoor unit height: 425mm
Indoor unit width: 1350mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Service & Warranty
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Duct Type Air Conditioner
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E16A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E17A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
User Guide - Smartzone Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
Installation
-
Installation Guide
High Static Ducted R32, InstallationManuals-HaierHVACNZ
High ESP Ducted R32 Compact, 12.5kW
AD125HN5FA-SET
Capacity
Cooling capacity (kW): 12.5kW
Heating capacity (kW): 14kW
Consumption
COP: 3.75
EER: 3.21
HSPF-RES (Hot/Average/Cold): 3.918 / 3.486 / 2.995
HSPFCOM (Hot/Average/Cold): 3.906 / 3.525 / 3.158
TCSPF-COM (Hot/Average/Cold): 4.546 / 4.609 / 4.909
TCSPF-RES (Hot/Average/Cold): 4.254 / 3.960 / 4.088
Product dimensions
Indoor unit depth : 490mm
Indoor unit height: 425mm
Indoor unit width: 1350mm
Outdoor unit depth : 370mm
Outdoor unit height : 965mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Accessories
Central controller: Optional
IR Controller: Optional
SmartHQ WiFi control: HI-WB101DEI
Standard controller: YR-E17A or YR-E16B
Capacity
Cooling capacity (kW): 12.5kW
Heating capacity (kW): 14kW
Consumption
COP: 3.75
EER: 3.21
HSPF-RES (Hot/Average/Cold): 3.918 / 3.486 / 2.995
HSPFCOM (Hot/Average/Cold): 3.906 / 3.525 / 3.158
TCSPF-COM (Hot/Average/Cold): 4.546 / 4.609 / 4.909
TCSPF-RES (Hot/Average/Cold): 4.254 / 3.960 / 4.088
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Compressor type: Inverter twin rotary
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Electronic expansion device:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 2.3kg
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AD125S2SH5FA
Indoor unit weight: 59kg
Outdoor unit model: 1U125S2SN5FA
Outdoor unit weight: 74kg
Pipe length maximum: 50m
Pipe size gas: 15.88mm
Pipe size liquid: 9.52mm
Performance
Airflow: 905 / 765 / 625 / 490L/S
DC inverter:
Indoor sound pressure SPL: 47 / 44 / 42 / 39dBA
Outdoor sound power SWL: 75dBA
Outdoor sound pressure SPL: 58dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
AMP draw: 32A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 490mm
Indoor unit height: 425mm
Indoor unit width: 1350mm
Outdoor unit depth : 370mm
Outdoor unit height : 965mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Service & Warranty
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Duct Type Air Conditioner
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E16A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E17A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
User Guide - Smartzone Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
Installation
-
Installation Guide
High Static Ducted R32, InstallationManuals-HaierHVACNZ
High ESP Ducted R32, 14kW
AD140HP5FA-SET
Capacity
Cooling capacity (kW): 14kW
Heating capacity (kW): 16kW
Consumption
COP: 3.50
EER: 3.16
HSPF-RES (Hot/Average/Cold): 3.783 / 3.390 / 2.956
HSPFCOM (Hot/Average/Cold): 3.775 / 3.427 / 3.089
TCSPF-COM (Hot/Average/Cold): 4.728 / 4.840 / 5.186
TCSPF-RES (Hot/Average/Cold): 4.404 / 4.110 / 4.285
Product dimensions
Indoor unit depth : 490mm
Indoor unit height: 425mm
Indoor unit width: 1350mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Accessories
SmartAir2 WiFi adaptor: Optional
SmartHQ WiFi control: Optional
Standard controller: Optional
Capacity
Cooling capacity (kW): 14kW
Heating capacity (kW): 16kW
Consumption
COP: 3.50
EER: 3.16
HSPF-RES (Hot/Average/Cold): 3.783 / 3.390 / 2.956
HSPFCOM (Hot/Average/Cold): 3.775 / 3.427 / 3.089
TCSPF-COM (Hot/Average/Cold): 4.728 / 4.840 / 5.186
TCSPF-RES (Hot/Average/Cold): 4.404 / 4.110 / 4.285
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Compressor type: Inverter twin rotary
Dry mode:
Electronic expansion device:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 2.9kg
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AD140S2SH5FA
Indoor unit weight: 61kg
Outdoor unit model: 1U140S2SP5FA
Outdoor unit weight: 105kg
Pipe length maximum: 75m
Pipe size gas: Pipe size 19.05mm
Pipe size liquid: Pipe size 9.52mm
Performance
Airflow: 1000 / 865 / 725 / 585 L/S
DC inverter:
Indoor sound pressure SPL: 49 / 46 / 43 / 40dBA
Outdoor sound power SWL: 70dBA
Outdoor sound pressure SPL: 53dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 490mm
Indoor unit height: 425mm
Indoor unit width: 1350mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Service & Warranty
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Duct Type Air Conditioner
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E16A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E17A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
User Guide - Smartzone Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
Installation
-
Installation Guide
High Static Ducted R32, InstallationManuals-HaierHVACNZ
High ESP Ducted R32, 15.5kW
AD160HP5FA-SET
Capacity
Cooling capacity (kW): 15.5kW
Heating capacity (kW): 18kW
Consumption
COP: 3.75
EER: 3.21
HSPF-RES (Hot/Average/Cold): 3.784 / 3.138 / 2.722
HSPFCOM (Hot/Average/Cold): 3.768 / 3.416 / 2.921
TCSPF-COM (Hot/Average/Cold): 4.518 / 4.597 / 4.899
TCSPF-RES (Hot/Average/Cold): 4.236 / 3.974 / 4.108
Product dimensions
Indoor unit depth : 490mm
Indoor unit height: 425mm
Indoor unit width: 1350mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Accessories
SmartAir2 WiFi adaptor: Optional
SmartHQ WiFi control: Optional
Standard controller: Optional
Capacity
Cooling capacity (kW): 15.5kW
Heating capacity (kW): 18kW
Consumption
COP: 3.75
EER: 3.21
HSPF-RES (Hot/Average/Cold): 3.784 / 3.138 / 2.722
HSPFCOM (Hot/Average/Cold): 3.768 / 3.416 / 2.921
TCSPF-COM (Hot/Average/Cold): 4.518 / 4.597 / 4.899
TCSPF-RES (Hot/Average/Cold): 4.236 / 3.974 / 4.108
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Compressor type: Inverter twin rotary
Dry mode:
Electronic expansion device:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 2.9kg
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AD160S2SH5FA
Indoor unit weight: 61kg
Outdoor unit model: 1U160S2SP5FA
Outdoor unit weight: 105kg
Pipe length maximum: 75m
Pipe size gas: Pipe size 19.05mm
Pipe size liquid: Pipe size 9.52mm
Performance
Airflow: 1115 / 945 / 780 / 615 L/S
DC inverter:
Indoor sound pressure SPL: 51 / 47 / 44 / 40dBA
Outdoor sound power SWL: 73dBA
Outdoor sound pressure SPL: 56dBA
R32 Refrigerant:
Working temperature cooling: -15°C to +50°C
Working temperature heating: -20°C to +24°C
Power requirements
AMP draw: 32A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 490mm
Indoor unit height: 425mm
Indoor unit width: 1350mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Service & Warranty
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Duct Type Air Conditioner
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E16A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E17A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
User Guide - Smartzone Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
Installation
-
Installation Guide
High Static Ducted R32, InstallationManuals-HaierHVACNZ
High ESP Ducted R32, 18kW
AD180HP5FA-SET
Capacity
Cooling capacity (kW): 18kW
Heating capacity (kW): 20kW
Consumption
COP: 3.75
EER: 3.20
HSPF-RES (Hot/Average/Cold): 3.703 / 3.080 / 2.676
HSPFCOM (Hot/Average/Cold): 3.686 / 3.165 / 2.868
TCSPF-COM (Hot/Average/Cold): 4.449 / 4.505 / 4.792
TCSPF-RES (Hot/Average/Cold): 4.173 / 3.900 / 4.022
Product dimensions
Indoor unit depth : 895mm
Indoor unit height: 500mm
Indoor unit width: 1330mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Accessories
SmartHQ WiFi control: HI-WB101DEI
Standard controller: YR-E17A or YR-E16B
Capacity
Cooling capacity (kW): 18kW
Heating capacity (kW): 20kW
Consumption
COP: 3.75
EER: 3.20
HSPF-RES (Hot/Average/Cold): 3.703 / 3.080 / 2.676
HSPFCOM (Hot/Average/Cold): 3.686 / 3.165 / 2.868
TCSPF-COM (Hot/Average/Cold): 4.449 / 4.505 / 4.792
TCSPF-RES (Hot/Average/Cold): 4.173 / 3.900 / 4.022
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Compressor type: Inverter twin rotary
Dry mode:
Electronic expansion device:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 3.1kg
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AD180S2SH5FA
Indoor unit weight: 94kg
Outdoor unit model: 1U180S2SP5FA
Outdoor unit weight: 104kg
Pipe length maximum: 75m
Pipe size gas: Pipe size 19.05mm
Pipe size liquid: Pipe size 9.52mm
Performance
Airflow: 1200 / 1050 / 890 / 725 L/S
DC inverter:
Indoor sound pressure SPL: 54 / 50 / 45dBA
Outdoor sound power SWL: 73dBA
Outdoor sound pressure SPL: 56dBA
R32 Refrigerant:
Working temperature cooling: -15°C to +50°C
Working temperature heating: -20°C to +24°C
Power requirements
AMP draw: 32A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 895mm
Indoor unit height: 500mm
Indoor unit width: 1330mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Service & Warranty
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Duct Type Air Conditioner
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E16A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E17A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
User Guide - Smartzone Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
Installation
-
Installation Guide
High Static Ducted R32, InstallationManuals-HaierHVACNZ
High ESP Ducted R410a, 20kW
ADH200H1ERK-SET
Capacity
Cooling capacity (kW): 20kW
Heating capacity (kW): 22.8kW
Consumption
COP: 3.68
EER: 3.23
HSPF-RES (Hot/Average/Cold): 3.523 / 3.327 / 2.994
HSPFCOM (Hot/Average/Cold): 3.504 / 3.378 / 3.129
TCSPF-COM (Hot/Average/Cold): 4.080 / 4.068 / 4.292
TCSPF-RES (Hot/Average/Cold): 3.860 / 3.610 / 3.676
Product dimensions
Indoor unit depth : 895mm
Indoor unit height: 500mm
Indoor unit width: 1330mm
Outdoor unit depth : 413mm
Outdoor unit height : 1636mm
Outdoor unit width: 1050mm
Warranty
Parts and labour: 5 years
Accessories
Standard controller: YR-E17
Capacity
Cooling capacity (kW): 20kW
Heating capacity (kW): 22.8kW
Consumption
COP: 3.68
EER: 3.23
HSPF-RES (Hot/Average/Cold): 3.523 / 3.327 / 2.994
HSPFCOM (Hot/Average/Cold): 3.504 / 3.378 / 3.129
TCSPF-COM (Hot/Average/Cold): 4.080 / 4.068 / 4.292
TCSPF-RES (Hot/Average/Cold): 3.860 / 3.610 / 3.676
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Compressor type: Inverter twin rotary
Dry mode:
Electronic expansion device:
MEPS approved:
Motor type: DC motor
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: ADH200H1ERG
Indoor unit weight: 96kg
Outdoor unit model: 1UH200H1ERK
Outdoor unit weight: 160kg
Pipe length maximum: 75m
Pipe size gas: 19.05mm
Pipe size liquid: 12.7mm
Performance
Airflow: 1200 / 1050 / 950 / 850 L/S
DC inverter:
Outdoor sound power SWL: 75dBA
Outdoor sound pressure SPL: 58dBA
R410a refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -20°C to +24°C
Power requirements
AMP draw: 20A
Power supply: 380-415vac
Supply frequency: 50Hz
Product dimensions
Indoor unit depth : 895mm
Indoor unit height: 500mm
Indoor unit width: 1330mm
Outdoor unit depth : 413mm
Outdoor unit height : 1636mm
Outdoor unit width: 1050mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Service & Warranty
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Duct Type Air Conditioner
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E16A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - YR-E17A Wired Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
-
User Guide - Smartzone Controller
High Static Ducted R32, GeneralFiles-HaierHVACNZ
Installation
-
Installation Guide
High Static Ducted R32, InstallationManuals-HaierHVACNZ
