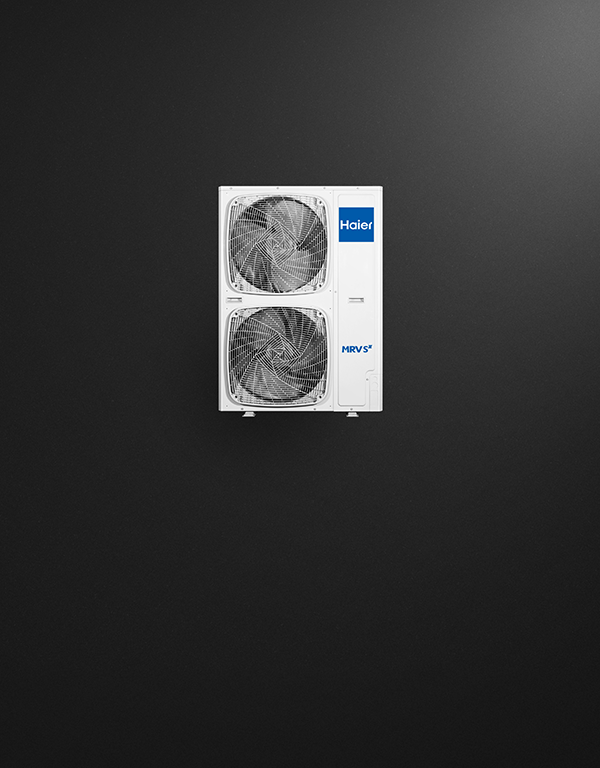

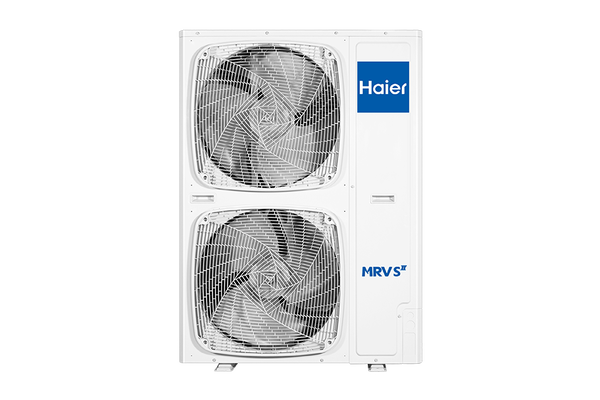

Outdoor Unit
Features
Low noise
The large-diameter 570mm fan with a zig-zag grille is designed for low air disturbance and quiet operation.
Night mode
Night Mode automatically lowers the sound level.
19 indoor units
Connect up to 19 indoor units of varying capacity and style from wall mounts, slim duct, high static duct, compact cassette’s or large cassette’s.
Installation flexibility
MRV-S offers a total pipe length of 300m and a lift height of 175m to suit a range of layouts. The compact design of the outdoor unit, with side discharge airflow, means it can be installed in narrower spaces.
Technologies
DC-INVERTER TECHNOLOGY
With an efficient DC fan motor and DC inverter compressor, large heat exchanger and low standby power, MRV-S is suited to large commercial buildings or homes, where it is more efficient than standard air conditioning.
CENTRAL CONTROLLER
For personalised control of the whole system, a wall-mounted controller lets you manage individual indoor units, groups or zones from a single point.
Specifications
MRV-S2 Heat Pump, 12.5kW
AU042FPERA
Capacity
Cooling capacity (kW): 12.6kW
Heating capacity (kW): 14.2kW
Consumption
HSPF-RES (Hot/Average/Cold): 3.795/3.530/3.096
TCSPF-RES (Hot/Average/Cold): 3.977/3.563/3.539
Product dimensions
Depth: 370mm
Height: 1350mm
Net weight: 115kg
Width: 950mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 12.6kW
Heating capacity (kW): 14.2kW
Consumption
HSPF-RES (Hot/Average/Cold): 3.795/3.530/3.096
TCSPF-RES (Hot/Average/Cold): 3.977/3.563/3.539
Features
Blue fin coils:
Compressor type: Inverter twin rotary
Heat pump:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 4kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 8
Pipe size gas: 15.88mm
Pipe size liquid: 9.52mm
Performance
DC inverter:
R410a refrigerant:
Sound power: 68dBA
Sound pressure: 50dBA
Working temperature cooling: -15°C to +48°C
Working temperature heating: -20°C to +27°C
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 370mm
Height: 1350mm
Net weight: 115kg
Width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure (English)
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
User Guide (English)
AU042FPERA, GeneralFiles-HaierHVACNZ
MRV-S2 Heat Pump, 14.0kW
AU052FPERA
Capacity
Cooling capacity (kW): 14kW
Heating capacity (kW): 16kW
Consumption
HSPF-RES (Hot/Average/Cold): 3.627/3.407/3.027
TCSPF-RES (Hot/Average/Cold): 3.829/3.462/3.452
Product dimensions
Depth: 370mm
Height: 1350mm
Net weight: 115kg
Width: 950mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 14kW
Heating capacity (kW): 16kW
Consumption
HSPF-RES (Hot/Average/Cold): 3.627/3.407/3.027
TCSPF-RES (Hot/Average/Cold): 3.829/3.462/3.452
Features
Blue fin coils:
Compressor type: Inverter twin rotary
Heat pump:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 4kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 10
Pipe size gas: 15.88mm
Pipe size liquid: 9.52mm
Performance
DC inverter:
R410a refrigerant:
Sound power: 69dBA
Sound pressure: 51dBA
Working temperature cooling: -15°C to +48°C
Working temperature heating: -20°C to +27°C
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 370mm
Height: 1350mm
Net weight: 115kg
Width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure (English)
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
User Guide (English)
AU052FPERA, GeneralFiles-HaierHVACNZ
MRV-S2 Heat Pump, 15.5kW
AU062FPERA
Capacity
Cooling capacity (kW): 15.5kW
Heating capacity (kW): 18kW
Consumption
HSPF-RES (Hot/Average/Cold): 3.38/2.957/2.641
TCSPF-RES (Hot/Average/Cold): 3.671/3.346/3.347
Product dimensions
Depth: 370mm
Height: 1350mm
Net weight: 115kg
Width: 950mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 15.5kW
Heating capacity (kW): 18kW
Consumption
HSPF-RES (Hot/Average/Cold): 3.38/2.957/2.641
TCSPF-RES (Hot/Average/Cold): 3.671/3.346/3.347
Features
Blue fin coils:
Compressor type: Inverter twin rotary
Heat pump:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 4kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 13
Pipe size gas: 15.88mm
Pipe size liquid: 9.52mm
Performance
DC inverter:
R410a refrigerant:
Sound power: 70dBA
Sound pressure: 53dBA
Working temperature cooling: -15°C to +48°C
Working temperature heating: -20°C to +27°C
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240vacV
Product dimensions
Depth: 370mm
Height: 1350mm
Net weight: 115kg
Width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure (English)
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
User Guide (English)
AU062FPERA, GeneralFiles-HaierHVACNZ
MRV-S 3 Phase RC, 22.6kW
AU08NFKERA
Capacity
Cooling capacity (kW): 22.6kW
Heating capacity (kW): 22.6kW
Product dimensions
Depth: 400mm
Height: 1636mm
Net weight: 149kg
Width: 1050mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 22.6kW
Heating capacity (kW): 22.6kW
Features
Blue fin coils:
Compressor type: Inverter twin rotary
Heat pump:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 5.1kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 13
Pipe size gas: 19.1mm
Pipe size liquid: 9.5mm
Performance
DC inverter:
Outdoor sound power SWL: 76dBA
Outdoor sound pressure SPL: 63dBA
R410a refrigerant:
Working temperature cooling: -15°C to +48°C
Working temperature heating: -20°C to +27°C
Power requirements
Power phase: Three phase
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 400mm
Height: 1636mm
Net weight: 149kg
Width: 1050mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure (English)
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
User Guide (English)
AU08NFKERA, GeneralFiles-HaierHVACNZ
MRV-S 3 Phase RC, 28kW
AU10NFKERA
Capacity
Cooling capacity (kW): 28kW
Heating capacity (kW): 28kW
Product dimensions
Depth: 400mm
Height: 1636mm
Net weight: 149kg
Width: 1050mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 28kW
Heating capacity (kW): 28kW
Features
Blue fin coils:
Compressor type: Inverter twin rotary
Heat pump:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 5.1kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 16
Pipe size gas: 22.2mm
Pipe size liquid: 9.5mm
Performance
DC inverter:
Outdoor sound power SWL: 77dBA
Outdoor sound pressure SPL: 64dBA
R410a refrigerant:
Working temperature cooling: -15°C to +48°C
Working temperature heating: -20°C to +27°C
Power requirements
Power phase: Three phase
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 400mm
Height: 1636mm
Net weight: 149kg
Width: 1050mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure (English)
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
User Guide (English)
AU10NFKERA, GeneralFiles-HaierHVACNZ
MRV-S 3 Phase RC, 31.5kW
AU12NFKERA
Capacity
Cooling capacity (kW): 31.5kW
Heating capacity (kW): 31.5kW
Product dimensions
Depth: 400mm
Height: 1636mm
Net weight: 149kg
Width: 1050mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 31.5kW
Heating capacity (kW): 31.5kW
Features
Blue fin coils:
Compressor type: Inverter twin rotary
Heat pump:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 5.1kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 19
Pipe size gas: 25.4mm
Pipe size liquid: 12.7mm
Performance
DC inverter:
Outdoor sound power SWL: 78dBA
Outdoor sound pressure SPL: 65dBA
R410a refrigerant:
Working temperature cooling: -15°C to +48°C
Working temperature heating: -20°C to +27°C
Power requirements
Power phase: Three phase
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 400mm
Height: 1636mm
Net weight: 149kg
Width: 1050mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure (English)
MRV-S Outdoor, GeneralFiles-HaierHVACNZ
-
User Guide (English)
AU12NFKERA, GeneralFiles-HaierHVACNZ
