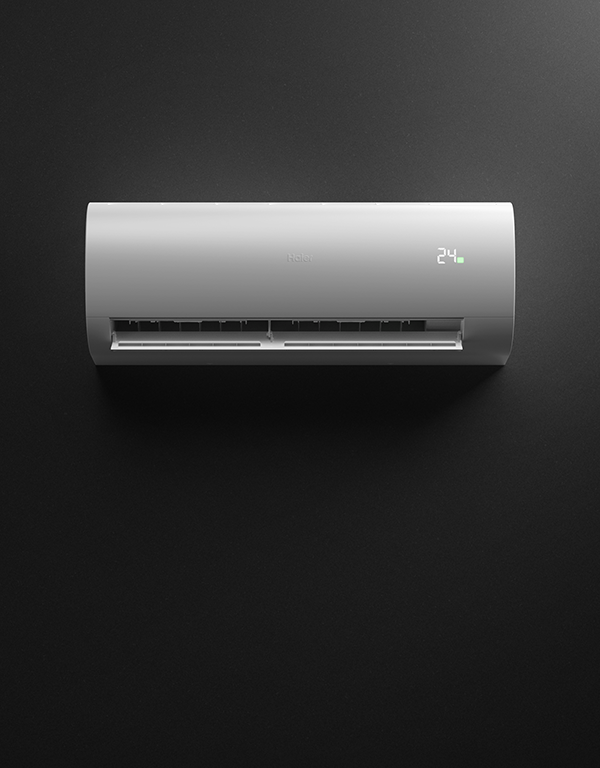

500 Series (Heating and Cooling), hero

500 Series (Heating and Cooling)

Wall Mounted Split System

Get a quote

Product Set

Outdoor Unit
Outdoor Unit
Indoor Unit
Indoor Unit
Controller
Controller

Features

Energy-efficient performance

Designed for energy efficiency, the 500 Series meets the requirements for inclusion on the EECA Approved Heat Pump list.

3D Airflow

For even comfort, 3D Airflow directs air horizontally and vertically to evenly distribute air throughout the room, helping reduce cold corners and maintain consistent temperatures.

Turbo cooling

With Turbo mode, the motor and fan operate at a higher frequency to quickly cool the room, ideal for fast relief on hot days.

Easy installation

Designed for easy installation, Haier 500 Series systems feature simple positioning requirements, with accessible control boards and motors for efficient servicing and maintenance.

Technologies

COANDA PLUS AIRFLOW

COANDA PLUS AIRFLOW

Coanda Plus Airflow technology directs warm or cool air across the room, helping deliver consistent temperature coverage from wall to wall.

SELF-CLEAN

SELF-CLEAN

The Self-Clean function freezes moisture on the indoor and outdoor coils, then melts it away to help remove built-up dirt and maintain clean, healthy airflow.

SMART CONTROL

SMART CONTROL

We believe in integrating smart technology into the heart of every home. The SmartHQ™ app puts control in your hands and means you can control your air-conditioner from anywhere at anytime. Our products are also compatible with Google Home and Amazon Alexa.

Specifications

500 Series Hi Wall 2.5kW Set

AS25PFHRA-SET

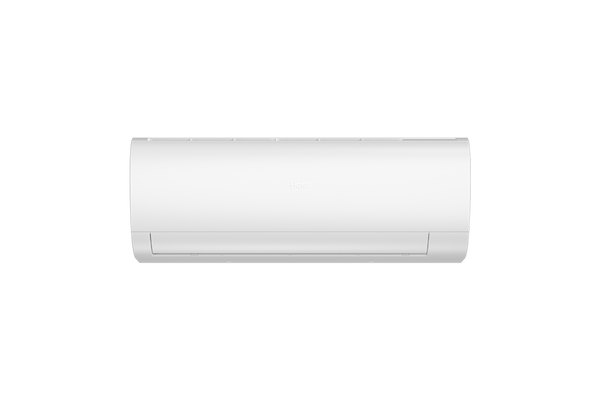

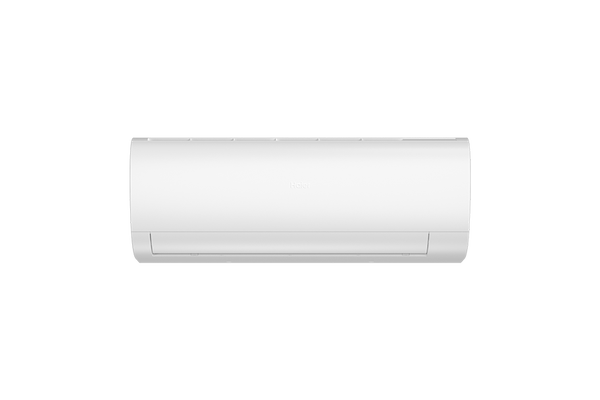

AS25PFHRA-SET, hero
Capacity

Cooling capacity (kW): 2.5kW

Heating capacity (kW): 3.2kW

Consumption

COP: 4.32

EER: 4.72

HSPF-RES (Hot/Average/Cold): 4.987 / 4.584 / 4.222

HSPFCOM (Hot/Average/Cold): 4.984 / 4.739 / 4.419

Star-Cool (Hot/Average/Cold): 5.5 / 5.0 / 5.0

Star-Heat (Hot/Average/Cold): 3.0 / 3.0 / 2.5

TCSPF-COM (Hot/Average/Cold): 9.951 / 11.253 / 17.573

TCSPF-RES (Hot/Average/Cold): 7.496 / 6.650 / 6.894

Product dimensions

Indoor unit depth : 200mm

Indoor unit height: 292mm

Indoor unit width: 805mm

Outdoor unit depth : 275mm

Outdoor unit height : 549mm

Outdoor unit width: 753mm

Warranty

Parts and labour: 5 years

AS25PFHRA-SET
500 Series Hi Wall 2.5kW Set

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: wireless

Capacity

Cooling capacity (kW): 2.5kW

Heating capacity (kW): 3.2kW

Consumption

COP: 4.32

EER: 4.72

HSPF-RES (Hot/Average/Cold): 4.987 / 4.584 / 4.222

HSPFCOM (Hot/Average/Cold): 4.984 / 4.739 / 4.419

Star-Cool (Hot/Average/Cold): 5.5 / 5.0 / 5.0

Star-Heat (Hot/Average/Cold): 3.0 / 3.0 / 2.5

TCSPF-COM (Hot/Average/Cold): 9.951 / 11.253 / 17.573

TCSPF-RES (Hot/Average/Cold): 7.496 / 6.650 / 6.894

Features

24 Hour timer:

Anti-bacterial silver ion coating:

Auto swing-up and down:

Blue fin coils:

Compressor type: Inverter twin rotary

Concealed LED display:

Dry mode:

Electronic expansion device:

Google Home:

Heat pump:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 0.78kg

Self diagnostics:

Sleep mode:

VEU approved:

Voice control via Google Home or Amazon Alexa:

Wi-Fi controller compatible:

Installation

Indoor unit model: AS25PFHRA

Indoor unit weight: 8.5kg

Outdoor unit model: 1U25PFHRA

Outdoor unit weight: 25kg

Pipe length maximum: 15m

Pipe size gas: Pipe size 9.52mm

Pipe size liquid: Pipe size 6.35mm

Performance

Airflow: 195/175/150

DC inverter:

Indoor sound pressure SPL: 38 / 34 / 30 / 24dBA

Outdoor sound power SWL: 60dBA

Outdoor sound pressure SPL: 48dBA

R32 Refrigerant:

Self cleaning evaporator:

Working temperature cooling: -10°C to +46°C

Working temperature heating: ‍-15℃ ~ 24℃

Power requirements

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 200mm

Indoor unit height: 292mm

Indoor unit width: 805mm

Outdoor unit depth : 275mm

Outdoor unit height : 549mm

Outdoor unit width: 753mm

Warranty

Parts and labour: 5 years

Download resources

Design Planning

General

Installation

500 Series Hi Wall 3.5kW Set

AS35PFHRA-SET

AS35PFHRA-SET, hero
Capacity

Cooling capacity (kW): 3.5kW

Heating capacity (kW): 3.7kW

Consumption

COP: 4.25

EER: 3.74

HSPF-RES (Hot/Average/Cold): 5.463 / 4.843 / 4.311

HSPFCOM (Hot/Average/Cold): 5.475 / 5.103 / 4.629

Star-Cool (Hot/Average/Cold): 5.0 / 4.5 / 4.5

Star-Heat (Hot/Average/Cold): 3.5 / 3.0 / 2.5

TCSPF-COM (Hot/Average/Cold): 10.422 / 12.532 / 29.925

TCSPF-RES (Hot/Average/Cold): 6.925 / 6.089 / 6.494

Product dimensions

Indoor unit depth : 217mm

Indoor unit height: 307mm

Indoor unit width: 875mm

Outdoor unit depth : 275mm

Outdoor unit height : 549mm

Outdoor unit width: 753mm

Warranty

Parts and labour: 5 years

AS35PFHRA-SET
500 Series Hi Wall 3.5kW Set

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: wireless

Capacity

Cooling capacity (kW): 3.5kW

Heating capacity (kW): 3.7kW

Consumption

COP: 4.25

EER: 3.74

HSPF-RES (Hot/Average/Cold): 5.463 / 4.843 / 4.311

HSPFCOM (Hot/Average/Cold): 5.475 / 5.103 / 4.629

Star-Cool (Hot/Average/Cold): 5.0 / 4.5 / 4.5

Star-Heat (Hot/Average/Cold): 3.5 / 3.0 / 2.5

TCSPF-COM (Hot/Average/Cold): 10.422 / 12.532 / 29.925

TCSPF-RES (Hot/Average/Cold): 6.925 / 6.089 / 6.494

Features

24 Hour timer:

Anti-bacterial silver ion coating:

Auto swing-up and down:

Blue fin coils:

Compressor type: Inverter twin rotary

Concealed LED display:

Dry mode:

Electronic expansion device:

Google Home:

Heat pump:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 0.66kg

Self diagnostics:

Sleep mode:

VEU approved:

Voice control via Google Home or Amazon Alexa:

Wi-Fi controller compatible:

Installation

Indoor unit model: AS35PFHRA

Indoor unit weight: 10kg

Outdoor unit model: 1U35PFHRA

Outdoor unit weight: 23.7kg

Pipe length maximum: 15m

Pipe size gas: Pipe size 9.52mm

Pipe size liquid: Pipe size 6.35mm

Performance

Airflow: 195 / 175 / 150

DC inverter:

Indoor sound pressure SPL: 40 / 36 / 32 / 25dBA

Outdoor sound power SWL: 61dBA

Outdoor sound pressure SPL: 49dBA

R32 Refrigerant:

Self cleaning evaporator:

Working temperature cooling: -10°C to +46°C

Working temperature heating: ‍-15℃ ~ 24℃

Power requirements

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 217mm

Indoor unit height: 307mm

Indoor unit width: 875mm

Outdoor unit depth : 275mm

Outdoor unit height : 549mm

Outdoor unit width: 753mm

Warranty

Parts and labour: 5 years

Download resources

Design Planning

General

Installation

500 Series Hi Wall 5.0kW Set

AS50PFHRA-SET

AS50PFHRA-SET, hero
Capacity

Cooling capacity (kW): 5kW

Heating capacity (kW): 5.3kW

Consumption

COP: 4.21

EER: 3.85

HSPF-RES (Hot/Average/Cold): 5.302 / 4.650 / 3.982

HSPFCOM (Hot/Average/Cold): 5.313 / 4.918 / 4.340

Star-Cool (Hot/Average/Cold): 4.5 / 4.0 / 4.0

Star-Heat (Hot/Average/Cold): 3.5 / 3.0 / 2.0

TCSPF-COM (Hot/Average/Cold): 8.595 / 9.829 / 17.260

TCSPF-RES (Hot/Average/Cold): 6.281 / 5.704 / 6.001

Product dimensions

Indoor unit depth : 220mm

Indoor unit height: 318mm

Indoor unit width: 975mm

Outdoor unit depth : 306mm

Outdoor unit height : 642mm

Outdoor unit width: 820mm

Warranty

Parts and labour: 5 years

AS50PFHRA-SET
500 Series Hi Wall 5.0kW Set

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: wireless

Capacity

Cooling capacity (kW): 5kW

Heating capacity (kW): 5.3kW

Consumption

COP: 4.21

EER: 3.85

HSPF-RES (Hot/Average/Cold): 5.302 / 4.650 / 3.982

HSPFCOM (Hot/Average/Cold): 5.313 / 4.918 / 4.340

Star-Cool (Hot/Average/Cold): 4.5 / 4.0 / 4.0

Star-Heat (Hot/Average/Cold): 3.5 / 3.0 / 2.0

TCSPF-COM (Hot/Average/Cold): 8.595 / 9.829 / 17.260

TCSPF-RES (Hot/Average/Cold): 6.281 / 5.704 / 6.001

Features

24 Hour timer:

Anti-bacterial silver ion coating:

Auto swing-up and down:

Blue fin coils:

Compressor type: Inverter twin rotary

Concealed LED display:

Dry mode:

Electronic expansion device:

Google Home:

Heat pump:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 0.9kg

Self diagnostics:

Sleep mode:

VEU approved:

Voice control via Google Home or Amazon Alexa:

Wi-Fi controller compatible:

Installation

Indoor unit model: AS50PFHRA

Indoor unit weight: 11.7kg

Outdoor unit model: 1U50PFHRA

Outdoor unit weight: 33.3kg

Pipe length maximum: 25m

Pipe size gas: Pipe size 12.70mm

Pipe size liquid: Pipe size 6.35mm

Performance

Airflow: 265 / 215 / 170

DC inverter:

Indoor sound pressure SPL: 43 / 39 / 37 / 28dBA

Outdoor sound power SWL: 63dBA

Outdoor sound pressure SPL: 53dBA

R32 Refrigerant:

Self cleaning evaporator:

Working temperature cooling: -10°C to +46°C

Working temperature heating: ‍-15℃ ~ 24℃

Power requirements

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 220mm

Indoor unit height: 318mm

Indoor unit width: 975mm

Outdoor unit depth : 306mm

Outdoor unit height : 642mm

Outdoor unit width: 820mm

Warranty

Parts and labour: 5 years

Download resources

Design Planning

General

Installation

500 Series Hi Wall 7.1kW Set

AS71PFHRA-SET

AS71PFHRA-SET, hero
Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 8kW

Consumption

COP: 3.72

EER: 3.7

HSPF-RES (Hot/Average/Cold): 4.832 / 4.240 / 3.723

HSPFCOM (Hot/Average/Cold): 4.848 / 4.492 / 4.037

Star-Cool (Hot/Average/Cold): 3.5 / 3.5 / 3.0

Star-Heat (Hot/Average/Cold): 3.5 / 2.0 / 3.5

TCSPF-COM (Hot/Average/Cold): 7.548 / 8.531 / 11.614

TCSPF-RES (Hot/Average/Cold): 6.065 / 5.553 / 5.878

Product dimensions

Indoor unit depth : 240mm

Indoor unit height: 345mm

Indoor unit width: 1105mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

AS71PFHRA-SET
500 Series Hi Wall 7.1kW Set

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: wireless

Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 8kW

Consumption

COP: 3.72

EER: 3.7

HSPF-RES (Hot/Average/Cold): 4.832 / 4.240 / 3.723

HSPFCOM (Hot/Average/Cold): 4.848 / 4.492 / 4.037

Star-Cool (Hot/Average/Cold): 3.5 / 3.5 / 3.0

Star-Heat (Hot/Average/Cold): 3.5 / 2.0 / 3.5

TCSPF-COM (Hot/Average/Cold): 7.548 / 8.531 / 11.614

TCSPF-RES (Hot/Average/Cold): 6.065 / 5.553 / 5.878

Features

24 Hour timer:

Anti-bacterial silver ion coating:

Auto swing-up and down:

Blue fin coils:

Compressor type: Inverter twin rotary

Concealed LED display:

Dry mode:

Electronic expansion device:

Google Home:

Heat pump:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.42kg

Self diagnostics:

Sleep mode:

VEU approved:

Voice control via Google Home or Amazon Alexa:

Wi-Fi controller compatible:

Installation

Indoor unit model: AS71PFHRA

Indoor unit weight: 15.5kg

Outdoor unit model: 1U71PFHRA

Outdoor unit weight: 44kg

Pipe length maximum: 25m

Pipe size gas: Pipe size 12.70mm

Pipe size liquid: Pipe size 6.35mm

Performance

Airflow: 310 / 270 / 225

DC inverter:

Indoor sound pressure SPL: 48 / 44 / 38 / 33dBA

Outdoor sound power SWL: 69dBA

Outdoor sound pressure SPL: 57dBA

R32 Refrigerant:

Self cleaning evaporator:

Working temperature cooling: -10°C to +46°C

Working temperature heating: ‍-15℃ ~ 24℃

Power requirements

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 240mm

Indoor unit height: 345mm

Indoor unit width: 1105mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

Download resources

Design Planning

General

Installation
