Product Set
Outdoor Unit
Indoor Unit
Controller
Features

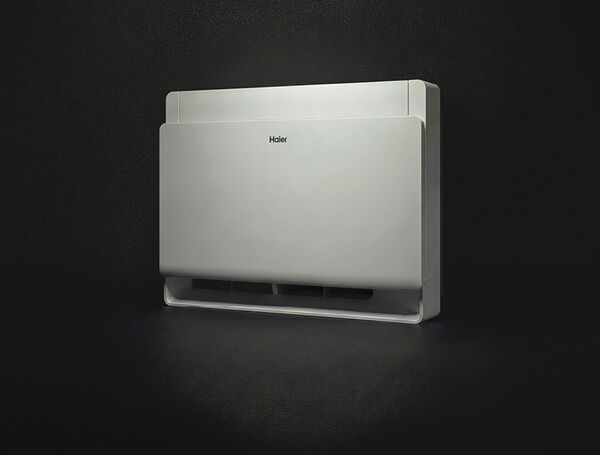

Compact and Sleek Design
A stylish floor console with a compact footprint ideal for rooms with limited wall space. The Red Dot 2025 award winning design blends clean lines with everyday comfort.
Optimised Heating Efficiency
V -shaped evaporator design enhances heat transfer performance for efficient warmth in colder months.
Installation Made Flexible
Designed for versatile installation, the floor console can be standard mounted, fitted with a skirting board, or recessed into the wall for a clean, integrated finish.
Smart Comfort Control
SmartHQ™ app control gives you comfort from anywhere at any time using your phone or voice assistants including Google Home and Amazon Alexa for easy everyday convenience.
Specifications

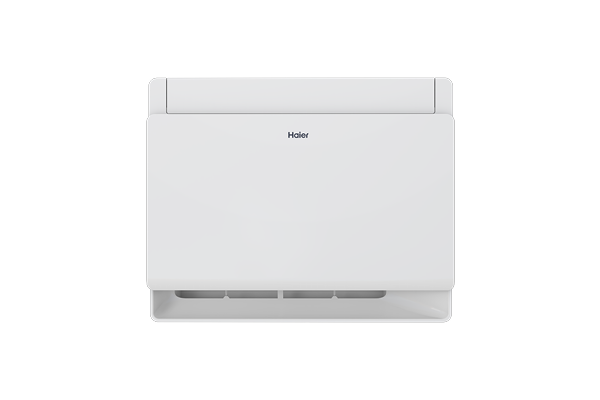

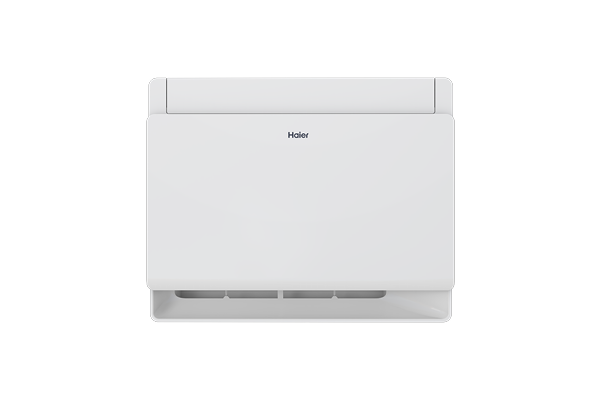

Floor Console, 5kW
AF50DBAHRA-SET
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 6kW
Consumption
COP: 3.797
EER: 3.876
Energy rating (cooling): 5
Energy rating (heating): 6
HSPF-RES (Hot/Average/Cold): 4.915/4.331/3.828
HSPFCOM (Hot/Average/Cold): 4.929/4.579/4.135
Star-Cool (Hot/Average/Cold): 3.5/3.5/3.5
Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0
TCSPF-COM (Hot/Average/Cold): 5.819/5.979/6.414
TCSPF-RES (Hot/Average/Cold): 5.424/5.087/5.313
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 600mm
Indoor unit width: 750mm
Net weight: 14kg
Outdoor unit depth : 340mm
Outdoor unit height : 705mm
Outdoor unit width: 890mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: 6178AH-1
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 6kW
Consumption
COP: 3.797
EER: 3.876
Energy rating (cooling): 5
Energy rating (heating): 6
HSPF-RES (Hot/Average/Cold): 4.915/4.331/3.828
HSPFCOM (Hot/Average/Cold): 4.929/4.579/4.135
Star-Cool (Hot/Average/Cold): 3.5/3.5/3.5
Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0
TCSPF-COM (Hot/Average/Cold): 5.819/5.979/6.414
TCSPF-RES (Hot/Average/Cold): 5.424/5.087/5.313
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Compressor type: Inverter twin rotary
Concealed LED display:
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Electronic expansion device:
Google Home:
Heat pump:
Infrared remote control:
Intelligent air:
Internal and external heat exchanger self-cleaning:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Power mode:
Refrigerant factory charge: 1.1kg
Self diagnostics:
Sleep mode:
Smart Appliance:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AF50DBAHRA
Indoor unit weight: 14kg
Outdoor unit model: 1U50WA1FRA
Outdoor unit weight: 42kg
Pipe length maximum: 25m
Pipe size gas: 12.7mm
Pipe size liquid: 6.35mm
Performance
Airflow: 225L/S
DC inverter:
Indoor sound pressure SPL: 44/38/33dBA
Outdoor sound power SWL: 64dBA
Outdoor sound pressure SPL: 52dBA
R32 Refrigerant:
Self cleaning evaporator:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
Power phase: Single phase
Power supply: 1/220-240/50
Supply frequency: 50HzHz
Supply voltage: 220-240VV
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 600mm
Indoor unit width: 750mm
Net weight: 14kg
Outdoor unit depth : 340mm
Outdoor unit height : 705mm
Outdoor unit width: 890mm
Warranty
Parts and labour: 5 years
Download resources
Design Planning
-
DWG
AF50DBAHRA-SET, DesignPlanning-HaierHVACNZ
-
DXF
AF50DBAHRA-SET, DesignPlanning-HaierHVACNZ
-
Specification Guide (English)
AF50DBAHRA-SET, DesignPlanning-HaierHVACNZ
General
-
Product Brochure (English)
Floor Console, GeneralFiles-HaierHVACNZ
