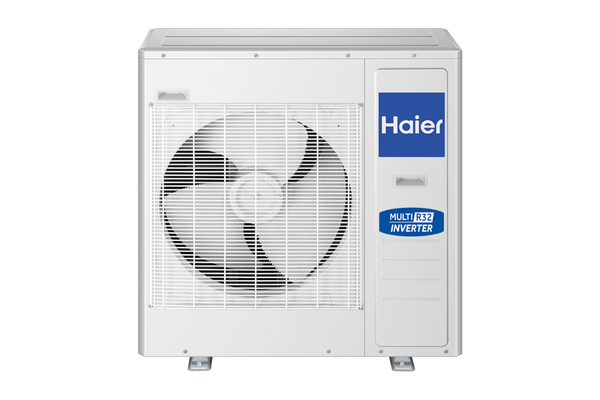

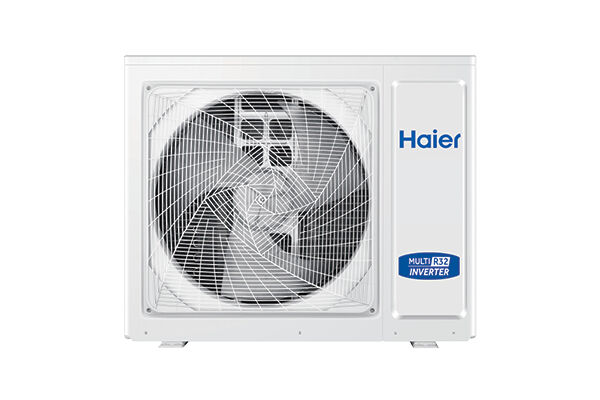

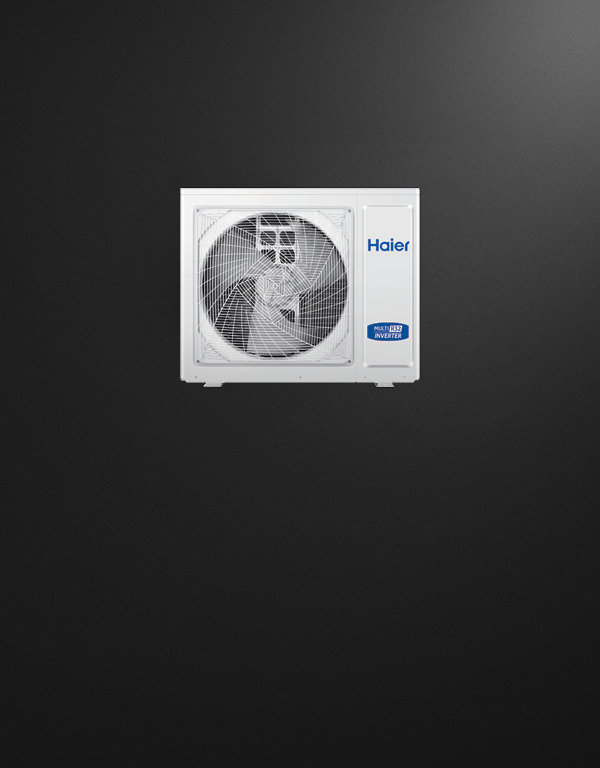

Super Match Multi RC Outdoor R32, hero

Super Match Multi RC Outdoor R32

Multi Split Systems: Super Match

Get a quote

Product Range

Our Multi Split: Super Match system gives you the flexibility to mix and match a range of different indoor air conditioning units throughout your home in one system. Haier's multi split Super Match outdoor units allows pairing with a range of different types of indoor units – including high wall, ducted and cassette models – depending on your needs.

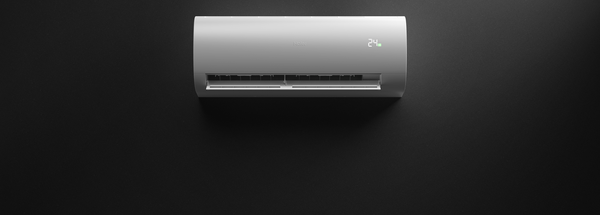

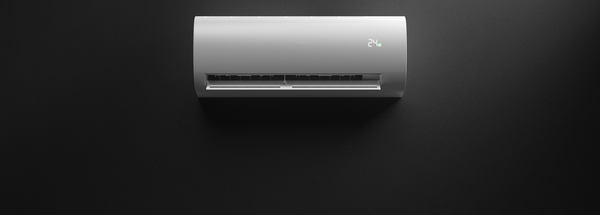

Wall Mounted: Pinnacle (Heating and Cooling), hero

Wall Mounted: Pinnacle (Heating and Cooling)

Featuring UV Protect, Pinnacle is a wall mounted indoor unit is part of our Super Match range and can be paired with our range of multi head outdoor units.

Learn more

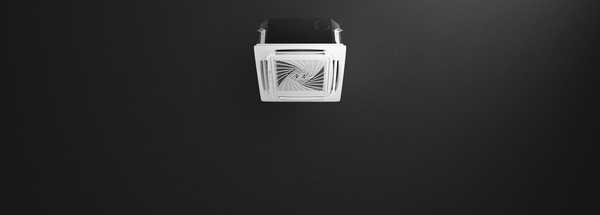

4 Way Compact Cassette, hero

4 Way Compact Cassette

This compact, ceiling-mounted cassette unit is part of our Super Match range and can be paired with a universal multi-head outdoor unit.

Learn more

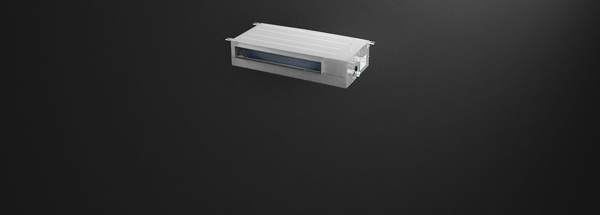

Slim Ducted (R32), hero

Slim Ducted (R32)

Discreet appearance, this slim ducted indoor unit is part of our Super Match range and can be paired with a universal multi-head outdoor unit. Featuring UV Protect.

Learn more

Features

hvac

Super Match Multi Split System

The Super Match multi split outdoor unit can be paired with various indoor units for a complete multi-room air conditioning / heat pump solution.

link

Simple Wiring

Wiring solution: parallel connection and easy wiring.

tv_options_input_settings

Faster Servicing

An easily accessible maintenance panel and service screen enable fast diagnostics.

device_thermostat

Wider Range of Operation

The outdoor unit operates in a wide range of external temperatures. Cooling: from -10°C to 46°C Heating: from -15°C to 24°C

Technologies

Super Match multi split system

Super Match multi split system

The Super Match outdoor unit can be paired with various indoor units for a complete multi-room air conditioning solution.

DC inverter technology

DC inverter technology

With 3D Direct Current (DC) inverter technology, Super Match multi split air conditioning units are designed to be more energy efficient that a standard AC motor, while delivering rapid heating and cooling as needed.

Anti-corrosion coating

Anti-corrosion coating

The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.

R32 refrigerant

R32 refrigerant

This Super Match outdoor unit uses a next-generation R32 refrigerant, which carries heat efficiently and has 33% the global warming potential of R410A.

Specifications

Multi RC Outdoor R32, 5kW

2U50MEAHRA

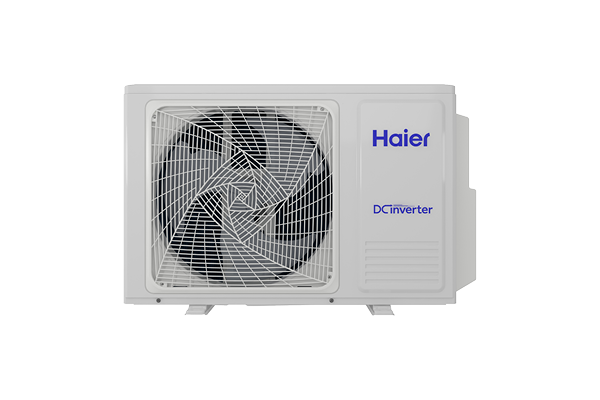

2U50MEAHRA, hero
Capacity

Cooling capacity (kW): 5kW

Heating capacity (kW): 5.6kW

Consumption

COP: 4.3

EER: 4.0

HSPF-RES (Hot/Average/Cold): 4.626/4.290/3.843

HSPFCOM (Hot/Average/Cold): 4.615/4.405/4.036

Star-Cool (Hot/Average/Cold): 5.0/4.0/4.5

Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 9.26/10.724/18.442

TCSPF-RES (Hot/Average/Cold): 6.722/5.921/6.186

Product dimensions

Depth: 280mm

Height: 553mm

Net weight: 35kg

Width: 800mm

Warranty

Parts and labour: 5 years

2U50MEAHRA
Multi RC Outdoor R32, 5kW

Capacity

Cooling capacity (kW): 5kW

Heating capacity (kW): 5.6kW

Consumption

COP: 4.3

EER: 4.0

HSPF-RES (Hot/Average/Cold): 4.626/4.290/3.843

HSPFCOM (Hot/Average/Cold): 4.615/4.405/4.036

Star-Cool (Hot/Average/Cold): 5.0/4.0/4.5

Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 9.26/10.724/18.442

TCSPF-RES (Hot/Average/Cold): 6.722/5.921/6.186

Features

Blue fin coils:

Compressor type: Twin rotary

DRED (Demand Response) ready: Optional HPRT-DRA001

Inverter controlled compressor:

MEPS approved:

Refrigerant factory charge: 1.05kg

Installation

Connectible indoor unit ratio: 50-130%

Outdoor unit weight: 35kg

Pipe length maximum: 50m

Pipe size gas: 9.52

Pipe size liquid: 6.35

Performance

Airflow: 2200

DC inverter:

Outdoor sound power SWL: 63dBA

Outdoor sound pressure SPL: 53dBA

R32 Refrigerant:

Working temperature cooling: -15°C to +24°C

Working temperature heating: ‍-15℃ to +50℃

Power requirements

Minimum circuit amps: 5.8MCA

Power phase: Single phase

Supply frequency: 50HzHz

Supply voltage: 220-240VV

Product dimensions

Depth: 280mm

Height: 553mm

Net weight: 35kg

Width: 800mm

Warranty

Parts and labour: 5 years

Download resources

Design Planning

General

Installation

Multi RC Outdoor R32, 5.5kW

3U55S2PR1FA

3U55S2PR1FA, hero
Capacity

Cooling capacity (kW): 5.2kW

Heating capacity (kW): 5kW

Consumption

COP: 4.39

EER: 4.09

HSPF-RES (Hot/Average/Cold): 4.214/4.073/3.773

HSPFCOM (Hot/Average/Cold): 4.191/4.088/3.845

Star-Cool (Hot/Average/Cold): 4.5/3.5/3.5

Star-Heat (Hot/Average/Cold): 2.5/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 8.622/9.004/12.894

TCSPF-RES (Hot/Average/Cold): 6.417/5.160/5.171

Product dimensions

Depth: 340mm

Height: 700mm

Net weight: 50kg

Width: 890mm

Warranty

Parts and labour: 5 years

3U55S2PR1FA
Multi RC Outdoor R32, 5.5kW

Capacity

Cooling capacity (kW): 5.2kW

Heating capacity (kW): 5kW

Consumption

COP: 4.39

EER: 4.09

HSPF-RES (Hot/Average/Cold): 4.214/4.073/3.773

HSPFCOM (Hot/Average/Cold): 4.191/4.088/3.845

Star-Cool (Hot/Average/Cold): 4.5/3.5/3.5

Star-Heat (Hot/Average/Cold): 2.5/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 8.622/9.004/12.894

TCSPF-RES (Hot/Average/Cold): 6.417/5.160/5.171

Features

Blue fin coils:

Compressor type: Twin rotary

DRED (Demand Response) ready: Optional HPRT-DRA001

Inverter controlled compressor:

MEPS approved:

Refrigerant factory charge: 1.4kg

VEU approved:

Installation

Maximum number indoor units: 3

Pipe length maximum: 50m

Pipe size gas: 3x 9.52mm

Pipe size liquid: 3x 6.35mm

Performance

Airflow: 3000m3/h

DC inverter:

Outdoor sound power SWL: 64dBA

Outdoor sound pressure SPL: 51dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15°C to +24°C

Power requirements

Minimum circuit amps: 11.2MCA

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Depth: 340mm

Height: 700mm

Net weight: 50kg

Width: 890mm

Warranty

Parts and labour: 5 years

Download resources

Design Planning

General

Installation

Multi RC Outdoor R32, 7.1kW

4U71S2PR1FA

4U71S2PR1FA, hero
Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 7.1kW

Consumption

COP: 4.64

EER: 4.25

HSPF-RES (Hot/Average/Cold): 4.845/4.565/4.152

HSPFCOM (Hot/Average/Cold): 4.830/4.649/4.305

Star-Cool (Hot/Average/Cold): 4.5/3.0/3.0

Star-Heat (Hot/Average/Cold): 3.0/3.0/2.5

TCSPF-COM (Hot/Average/Cold): 7.309/7.448/8.618

TCSPF-RES (Hot/Average/Cold): 6.142/4.995/4.973

Product dimensions

Depth: 340mm

Height: 700mm

Net weight: 61kg

Width: 890mm

Warranty

Parts and labour: 5 years

4U71S2PR1FA
Multi RC Outdoor R32, 7.1kW

Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 7.1kW

Consumption

COP: 4.64

EER: 4.25

HSPF-RES (Hot/Average/Cold): 4.845/4.565/4.152

HSPFCOM (Hot/Average/Cold): 4.830/4.649/4.305

Star-Cool (Hot/Average/Cold): 4.5/3.0/3.0

Star-Heat (Hot/Average/Cold): 3.0/3.0/2.5

TCSPF-COM (Hot/Average/Cold): 7.309/7.448/8.618

TCSPF-RES (Hot/Average/Cold): 6.142/4.995/4.973

Features

Blue fin coils:

Compressor type: Twin rotary

DRED (Demand Response) ready: Optional HPRT-DRA001

Inverter controlled compressor:

MEPS approved:

Refrigerant factory charge: 2.2kg

VEU approved:

Installation

Maximum number indoor units: 3

Pipe length maximum: 70m

Pipe size gas: 3x 9.52 + 1x 12.7mm

Pipe size liquid: 3x 6.35mm

Performance

Airflow: 4000m3/h

DC inverter:

Outdoor sound power SWL: 68dBA

Outdoor sound pressure SPL: 55dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15°C to 24°C

Power requirements

Minimum circuit amps: 15.3MCA

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Depth: 340mm

Height: 700mm

Net weight: 61kg

Width: 890mm

Warranty

Parts and labour: 5 years

Download resources

Design Planning

General

Installation

Multi RC Outdoor R32, 8kW

4U80S2PR1FA

4U80S2PR1FA, hero
Capacity

Cooling capacity (kW): 8kW

Heating capacity (kW): 8kW

Consumption

COP: 4.47

EER: 3.74

Energy rating (cooling): 4.0/3.0/3.5

Energy rating (heating): 3.0/2.5/2.0

HSPF-RES (Hot/Average/Cold): 4.852/4.477/3.946

HSPFCOM (Hot/Average/Cold): 4.842/4.607/4.169

Star-Cool (Hot/Average/Cold): 4.0/3.0/3.5

Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 7.437/7.838/9.857

TCSPF-RES (Hot/Average/Cold): 5.993/4.958/5.044

Product dimensions

Depth: 340mm

Height: 700mm

Net weight: 61kg

Width: 890mm

Warranty

Parts and labour: 5 years

4U80S2PR1FA
Multi RC Outdoor R32, 8kW

Capacity

Cooling capacity (kW): 8kW

Heating capacity (kW): 8kW

Consumption

COP: 4.47

EER: 3.74

Energy rating (cooling): 4.0/3.0/3.5

Energy rating (heating): 3.0/2.5/2.0

HSPF-RES (Hot/Average/Cold): 4.852/4.477/3.946

HSPFCOM (Hot/Average/Cold): 4.842/4.607/4.169

Star-Cool (Hot/Average/Cold): 4.0/3.0/3.5

Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 7.437/7.838/9.857

TCSPF-RES (Hot/Average/Cold): 5.993/4.958/5.044

Features

Blue fin coils:

Compressor type: Twin rotary

DRED (Demand Response) ready: Optional HPRT-DRA001

Inverter controlled compressor:

MEPS approved:

Refrigerant factory charge: 2.2kg

VEU approved:

Installation

Maximum number indoor units: 4

Pipe length maximum: 70m

Pipe size gas: 3x 9.52 + 1x 12.7mm

Pipe size liquid: 4x 6.35mm

Performance

Airflow: 4000m3/h

DC inverter:

Outdoor sound power SWL: 68dBA

Outdoor sound pressure SPL: 55dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15°C to +24°C

Power requirements

Minimum circuit amps: 15.7MCA

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Depth: 340mm

Height: 700mm

Net weight: 61kg

Width: 890mm

Warranty

Parts and labour: 5 years

Download resources

Design Planning

General

Installation

Multi RC Outdoor R32, 10kW

5U100S2PS1FA

5U100S2PS1FA, hero
Capacity

Cooling capacity (kW): 10kW

Heating capacity (kW): 10kW

Consumption

COP: 4.24

EER: 3.92

HSPF-RES (Hot/Average/Cold): 4.481/4.166/3.699

HSPFCOM (Hot/Average/Cold): 4.468/4.268/3.888

Star-Cool (Hot/Average/Cold): 4.5/3.5/3.5

Star-Heat (Hot/Average/Cold): 2.5/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 8.253/8.626/13.096

TCSPF-RES (Hot/Average/Cold): 6.131/5.049/5.097

Product dimensions

Depth: 372mm

Height: 760mm

Net weight: 66kg

Width: 920mm

Warranty

Parts and labour: 5 years

5U100S2PS1FA
Multi RC Outdoor R32, 10kW

Capacity

Cooling capacity (kW): 10kW

Heating capacity (kW): 10kW

Consumption

COP: 4.24

EER: 3.92

HSPF-RES (Hot/Average/Cold): 4.481/4.166/3.699

HSPFCOM (Hot/Average/Cold): 4.468/4.268/3.888

Star-Cool (Hot/Average/Cold): 4.5/3.5/3.5

Star-Heat (Hot/Average/Cold): 2.5/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 8.253/8.626/13.096

TCSPF-RES (Hot/Average/Cold): 6.131/5.049/5.097

Features

Blue fin coils:

Compressor type: Twin rotary

DRED (Demand Response) ready: Optional HPRT-DRA001

Inverter controlled compressor:

MEPS approved:

Refrigerant factory charge: 2.4kg

VEU approved:

Installation

Maximum number indoor units: 5

Pipe length maximum: 80m

Pipe size gas: 3x 9.52 + 2x 12.7mm

Pipe size liquid: 5x 6.35mm

Performance

Airflow: 4200m3/h

DC inverter:

Outdoor sound power SWL: 70dBA

Outdoor sound pressure SPL: 55dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15°C to +24°C

Power requirements

Minimum circuit amps: 18.2MCA

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Depth: 372mm

Height: 760mm

Net weight: 66kg

Width: 920mm

Warranty

Parts and labour: 5 years

Download resources

Design Planning

General

Installation

Multi RC Outdoor R32, 12.5kW

5U125S2PN1FA

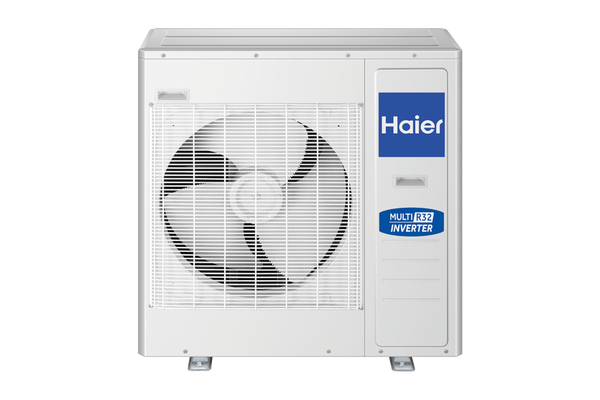

5U125S2PN1FA, hero
Capacity

Cooling capacity (kW): 12.2kW

Heating capacity (kW): 12.2kW

Consumption

COP: 4.34

EER: 3.94

HSPF-RES (Hot/Average/Cold): 4.814/4.414/3.890

HSPFCOM (Hot/Average/Cold): 4.808/4.560/4.124

Star-Cool (Hot/Average/Cold): 4.5/3.5/3.5

Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 7.729/8.198/10.787

TCSPF-RES (Hot/Average/Cold): 6.102/5.099/5.167

Product dimensions

Depth: 370mm

Height: 965mm

Net weight: 79kg

Width: 950mm

Warranty

Parts and labour: 5 years

5U125S2PN1FA
Multi RC Outdoor R32, 12.5kW

Capacity

Cooling capacity (kW): 12.2kW

Heating capacity (kW): 12.2kW

Consumption

COP: 4.34

EER: 3.94

HSPF-RES (Hot/Average/Cold): 4.814/4.414/3.890

HSPFCOM (Hot/Average/Cold): 4.808/4.560/4.124

Star-Cool (Hot/Average/Cold): 4.5/3.5/3.5

Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 7.729/8.198/10.787

TCSPF-RES (Hot/Average/Cold): 6.102/5.099/5.167

Features

Blue fin coils:

Compressor type: Twin rotary

DRED (Demand Response) ready: Optional HPRT-DRA001

Inverter controlled compressor:

MEPS approved:

Refrigerant factory charge: 2.5kg

VEU approved:

Installation

Maximum number indoor units: 5

Pipe length maximum: 100m

Pipe size gas: 3x 9.52 + 2x 12.7mm

Pipe size liquid: 5x 6.35mm

Performance

Airflow: 4200m3/h

DC inverter:

Outdoor sound power SWL: 73dBA

Outdoor sound pressure SPL: 58dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15°C to +24°C

Power requirements

Minimum circuit amps: 22.8MCA

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Depth: 370mm

Height: 965mm

Net weight: 79kg

Width: 950mm

Warranty

Parts and labour: 5 years

Download resources

Design Planning

General

Installation
